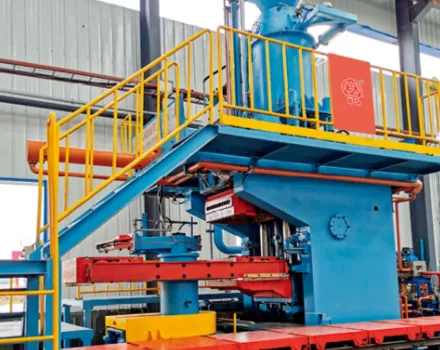

The Pivotal Role of the Cast Iron Moulding Machine in Modern Foundries

In the intricate world of metal casting, the cast iron moulding machine stands as a foundational pillar, indispensable to the efficiency, precision, and economic viability of modern foundries. This sophisticated piece of equipment is not merely a tool but the very heart of the casting process, responsible for creating the meticulously formed sand moulds into which molten iron is poured. Its evolution mirrors the broader advancements in industrial manufacturing, transitioning from rudimentary manual processes to highly automated, intelligent systems capable of producing complex components with unparalleled accuracy and speed. The fundamental purpose of such a machine is to compact sand around a pattern, thereby creating a cavity that precisely replicates the desired shape of the final cast part. The quality of this mould directly dictates the dimensional accuracy, surface finish, and structural integrity of the cast product. Without a reliable and efficient cast iron moulding machine, foundries would struggle to meet the stringent demands of sectors ranging from automotive and aerospace to heavy machinery and construction. Its significance extends beyond mere functionality; it embodies the critical interface between design intent and tangible product, enabling mass production while maintaining exacting standards. The ability to consistently produce high-quality moulds at high volumes is what empowers foundries to serve a global market hungry for robust, durable cast iron components, making the selection and optimization of this machinery a strategic imperative for any forward-thinking manufacturing operation.

Unveiling the Economic and Operational Impact of Advanced Moulding Solutions

The implementation of advanced cast iron moulding solutions translates directly into substantial economic and operational benefits, reshaping a foundry's competitive landscape. Modern machines are engineered to drastically improve production efficiency and material utilization, factors that directly impact the bottom line. For instance, foundries upgrading to contemporary automatic moulding lines often report a reduction in cycle times by up to 30-40% compared to semi-automatic or jolt-squeeze systems, pushing daily output capabilities significantly higher. This acceleration in production does not come at the expense of quality; quite the opposite. Advanced compaction methods, such as high-pressure squeezing or vacuum-assisted moulding, ensure unparalleled mould density and uniformity, leading to a decrease in casting defects by an average of 15-20%. This reduction in scrap rates represents a substantial saving in raw material costs, energy expenditure, and post-casting finishing operations. Beyond material savings, energy efficiency is a core design principle in new machines. Variable frequency drives (VFDs) for motors, optimized pneumatic and hydraulic systems, and intelligent control algorithms can collectively reduce energy consumption by 10-25% per tonne of metal cast, offering a compelling return on investment over the machine's lifespan. Furthermore, the automation inherent in these systems minimizes the need for manual labor in arduous and repetitive tasks, redirecting skilled personnel to more supervisory and quality control roles, thereby improving workplace safety and reducing labor costs. The cumulative effect of these improvements — higher output, superior quality, reduced waste, lower energy consumption, and optimized labor — positions foundries to achieve greater profitability and maintain a robust market position in an increasingly demanding global economy.

Technical Superiority: Innovations Driving Moulding Machine Performance

The technical superiority of contemporary moulding machines is a testament to continuous innovation, driven by the imperative for greater precision, speed, and reliability. At the heart of these advancements are sophisticated compaction technologies. High-pressure squeeze moulding systems, utilizing multi-piston or diaphragm squeeze heads, achieve exceptional mould hardness and uniformity, crucial for producing intricate castings with tight tolerances. These systems can generate pressures exceeding 10 kg/cm², ensuring optimal sand compaction even in complex pattern geometries. Another significant innovation is the integration of advanced control systems, primarily through Programmable Logic Controllers (PLCs) and Human-Machine Interfaces (HMIs). These intuitive interfaces allow operators to fine-tune moulding parameters, monitor machine diagnostics in real-time, and store multiple moulding recipes, facilitating rapid changeovers and consistent reproduction of mould quality. Automation extends to sand filling mechanisms, where precision feeders ensure consistent sand volume and distribution, minimizing variations between mould halves. Furthermore, pattern change systems have been revolutionized, with automated indexing and quick-change tooling reducing downtime from hours to mere minutes, dramatically boosting overall equipment effectiveness (OEE). Material handling within the machine itself has also seen substantial improvements. Vibratory compaction, combined with innovative venting solutions, ensures optimal sand flow and gas evacuation, preventing casting defects like blows and pinholes. Robotic integration for core setting, mould closing, and finished mould handling is increasingly common, further enhancing speed, safety, and precision. These technical leaps collectively contribute to a moulding process that is not only faster and more efficient but also remarkably more consistent and adaptable to diverse production requirements, pushing the boundaries of what is achievable in cast iron foundry operations.

Strategic Selection: A Comparative Analysis of Leading Moulding Machine Manufacturers

Choosing the right moulding machine manufacturer is a critical strategic decision that can profoundly impact a foundry's operational efficiency, product quality, and long-term profitability. The market offers a range of reputable manufacturers, each with distinct specializations, technological offerings, and support structures. A careful comparative analysis, considering factors such as machine type, automation level, capacity, and post-sales support, is essential. Below is a comparative overview of typical characteristics you might find among leading providers, illustrating the diverse options available:

Each manufacturer brings a unique value proposition. Foundries must evaluate their specific production needs, desired output volumes, budget constraints, and long-term strategic goals against these offerings. A thorough due diligence process, including site visits, reference checks, and detailed technical discussions, is crucial to making an informed investment that will yield optimal results for years to come.

Tailored Precision: Crafting Custom Solutions for Unique Foundry Demands

The strength of modern moulding technology lies not only in its inherent capabilities but also in its profound adaptability through customization. Few foundries operate with identical requirements; variations in component size, production volume, alloy type, and existing infrastructure necessitate tailored solutions rather than off-the-shelf purchases. Leading manufacturers understand this imperative, offering extensive customization options to ensure that a moulding machine perfectly integrates into and optimizes a foundry's specific operational context. This bespoke approach often begins with determining the ideal machine configuration, whether it's a high-speed vertical flaskless system for mass production of smaller components or a robust horizontal flasked machine designed for larger, more intricate castings. Flask size, which directly dictates the maximum dimensions of the mould, is a primary customization parameter, ranging from compact setups for precision parts to massive machines for heavy industrial components. Furthermore, the type of sand system – green sand, no-bake, or shell moulding – profoundly influences machine design, requiring specific sand handling, compaction, and reclamation systems. Foundries can also specify varying levels of automation, from semi-automatic lines requiring operator intervention to fully robotic cells capable of autonomous operation, including automatic core setting, mould closing, and extraction. Integration with existing foundry infrastructure is another critical aspect; customized conveyors, sand mixers, shakeouts, and cooling lines ensure a seamless flow from moulding to pouring. Specialized tooling, pattern plates, and core boxes are often designed in conjunction with the machine to optimize part production. Moreover, software customization for control systems allows for unique operational sequences, data logging, and integration with broader manufacturing execution systems (MES). This deep level of customization ensures that the investment in a moulding machine yields maximum efficiency, minimizes bottlenecks, and precisely aligns with a foundry's unique production goals and technical specifications.

Real-World Success: Diverse Applications and Impactful Case Studies

The versatility and efficacy of modern moulding machines are best illustrated through their diverse applications across numerous industries, each case study highlighting a unique blend of efficiency, precision, and cost-effectiveness. In the automotive sector, a leading engine block manufacturer implemented an automated high-pressure squeeze moulding line, specifically designed for large-volume production of complex cylinder blocks and cylinder heads. This transition resulted in a 25% increase in production output, a 12% reduction in machining allowances due to superior dimensional accuracy, and a significant decrease in casting porosity, leading to enhanced engine performance and longevity. The consistent mould quality minimized rejects, contributing to an overall cost saving of 8% per unit. Another compelling example comes from the heavy machinery industry, where a producer of excavator components adopted a customized horizontal flaskless moulding machine. Facing challenges with producing large, thick-walled parts with consistent density, they opted for a system capable of precise sand compaction and rapid pattern changes. This led to a dramatic improvement in casting integrity, virtually eliminating hot tears and shrinkage defects. The ability to switch between different part patterns quickly reduced setup times by over 70%, allowing for more flexible production schedules and meeting fluctuating market demands more efficiently. In the plumbing and fittings industry, a foundry specializing in intricate pipe joints and valves deployed a vertical flaskless moulding machine with advanced core setting automation. This integration not only boosted their daily production of smaller components by approximately 35% but also improved the internal surface finish of their castings, reducing the need for costly post-casting treatments. These examples underscore how tailored moulding solutions drive tangible improvements in productivity, quality, and economic performance across a spectrum of industrial applications.

Embracing the Future: The Evolving Landscape of Cast Iron Moulding Machine Technology

The trajectory of the cast iron moulding machine is one of continuous evolution, driven by the relentless pursuit of greater efficiency, sustainability, and intelligent manufacturing. The future landscape will undoubtedly be shaped by further advancements in automation and digitalization. We are moving towards fully autonomous moulding cells, where artificial intelligence (AI) and machine learning algorithms will optimize parameters in real-time, predicting and preventing potential defects even before they occur. This predictive maintenance capability will drastically reduce downtime and extend the lifespan of machinery. Robotics will become even more ubiquitous, handling not just core setting and mould closing but also complex tasks such as integrated quality inspection using advanced vision systems and real-time feedback loops. The integration of the Internet of Things (IoT) will transform moulding operations into interconnected ecosystems, where data from every sensor and actuator is continuously collected, analyzed, and leveraged to fine-tune processes across the entire foundry. This will enable unparalleled levels of process control and transparency. Furthermore, sustainability will remain a critical driver. Future moulding machines will likely incorporate even more energy-efficient designs, advanced sand reclamation systems that minimize waste and environmental impact, and potentially new moulding materials or binders that are more eco-friendly. The emphasis on ergonomics and operator safety will also continue to grow, with machines designed for minimal human intervention in hazardous areas. The ability of these machines to adapt to increasingly complex component designs and shorter production runs will be paramount, requiring greater flexibility and quicker changeover capabilities. As manufacturing demands become more specialized and global competition intensifies, the cast iron moulding machine will not only remain a critical asset but will evolve into an even more sophisticated, intelligent, and environmentally responsible cornerstone of modern foundry practice.

Frequently Asked Questions (FAQs) about Cast Iron Moulding Machines

Q1: What is the primary function of a cast iron moulding machine?

A1: The primary function of a cast iron moulding machine is to compact sand around a pattern, creating a precise sand mould cavity into which molten cast iron will be poured. This process is crucial for mass-producing cast iron components with accurate dimensions and specified surface finishes.

Q2: What are the main types of cast iron moulding machines available?

A2: The main types include jolt-squeeze machines, high-pressure squeeze machines (vertical and horizontal parting), flaskless moulding machines, and vacuum-sealed moulding (V-process) machines. Each type offers different advantages in terms of production speed, mould quality, and suitable casting sizes.

Q3: How do automated moulding machines improve efficiency in a foundry?

A3: Automated moulding machines significantly improve efficiency by reducing cycle times, minimizing manual labor, ensuring consistent mould quality, lowering scrap rates, and facilitating faster pattern changes. They also enhance workplace safety and allow for higher production volumes.

Q4: What factors should be considered when selecting a cast iron moulding machine?

A4: Key factors include desired production volume, maximum casting size and complexity, required mould quality and dimensional accuracy, type of sand system (e.g., green sand), budget, available floor space, level of automation desired, and after-sales support from the manufacturer.

Q5: Can existing moulding machines be upgraded or customized?

A5: Yes, many manufacturers offer upgrade kits and customization options for existing machines. This can include integrating advanced control systems (PLCs/HMIs), automating specific processes (e.g., core setting), or modifying flask sizes to meet evolving production needs, thereby extending the machine's lifespan and capabilities.

Q6: What is the significance of "high-pressure squeeze" technology in modern moulding machines?

A6: High-pressure squeeze technology is significant because it achieves superior sand compaction and uniform mould hardness compared to traditional jolt-squeeze methods. This results in highly accurate castings with excellent surface finishes and fewer defects, crucial for complex and precision components.

Q7: How do cast iron moulding machines contribute to sustainable manufacturing?

A7: Modern cast iron moulding machines contribute to sustainability through several features: optimized energy consumption (e.g., VFDs), reduced raw material waste due to lower defect rates, efficient sand reclamation systems, and the ability to work with environmentally friendly sand binders. Their precision also reduces the need for extensive post-casting machining, saving energy and materials.
