Release Time：2025-10-30

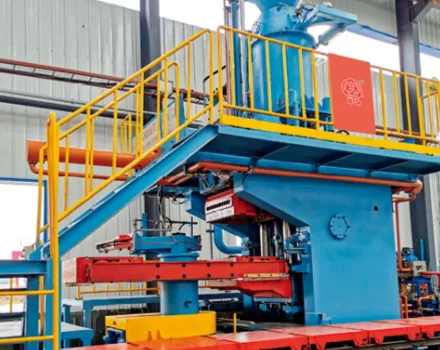

In the vast landscape of industrial manufacturing, certain foundational components serve as the unsung heroes, enabling the functionality and resilience of machinery across every sector imaginable. Among these,machine castings stand out as critical elements, forming the backbone of equipment ranging from intricate medical devices to colossal wind turbines. These engineered components are not merely shaped metal; they are the result of sophisticated metallurgical science and precision engineering, designed to deliver exceptional strength, durability, and performance under the most demanding conditions. The art and science of casting molten metal into a desired form have evolved significantly, transitioning from rudimentary techniques to highly advanced processes that integrate cutting-edge simulation software, material science, and stringent quality control protocols. This evolution has transformed machine castings into versatile, high-performance solutions that are indispensable for achieving the operational efficiency, structural integrity, and long-term reliability required in modern industrial applications. Their ability to deliver complex geometries with precise specifications, often at a lower cost for volume production compared to other methods, solidifies their position as a cornerstone of global manufacturing. This exploration will delve into the multifaceted world of machine castings, examining their technical advantages, the rigorous processes behind their creation, their diverse applications, and the vital role they play in shaping the future of industry.
The enduring prominence of machine castings in manufacturing is rooted deeply in their inherent technical advantages, which consistently outperform alternative fabrication methods for specific applications. One of the foremost benefits is the exceptional strength-to-weight ratio achievable with modern casting alloys and techniques. Through precise alloying and controlled solidification, foundries can engineer materials that provide robust structural integrity without contributing excessive mass, a critical factor for improving energy efficiency and reducing operational loads in moving parts or portable equipment. Furthermore, castings offer unparalleled dimensional stability and precision.
The solidification process, when managed meticulously, results in a homogeneous internal structure that resists warping and deformation, ensuring tight tolerances can be maintained even under varying thermal or mechanical stresses. This precision often minimizes the need for extensive post-machining, directly translating into cost savings and reduced lead times.Another significant advantage lies in their capacity to produce complex geometries and intricate internal features that would be prohibitively expensive or impossible to create with other methods like machining or welding. The fluidity of molten metal allows it to fill elaborate molds, capturing fine details and creating integrated functionalities, such as internal passages for fluids or complex ribbing for enhanced rigidity, all in a single piece. This consolidation of parts reduces assembly complexity, minimizes potential failure points, and optimizes material usage. Moreover, certain cast materials, particularly those with a lamellar graphite structure like grey cast iron, exhibit superior vibration damping capabilities. This intrinsic property is invaluable in machine tools, engine blocks, and other equipment where minimizing resonance and harmonic vibrations is crucial for extending tool life, enhancing operational precision, and improving operator comfort. Finally, for medium to high-volume production, casting often presents the most cost-effective manufacturing solution. While initial tooling investments can be substantial, the low per-unit cost, reduced material waste, and minimized subsequent processing steps quickly offset these initial outlays, making it an economically compelling choice for numerous industrial applications. The versatility in material choice—from ductile iron and various steels to aluminum, magnesium, and exotic alloys—further broadens the applicability of casting, allowing engineers to select the optimal material properties for specific environmental and operational demands.
The transformation of raw metallic ingots into high-performance machine castings is a testament to the intricate balance of scientific principles and engineering precision. The journey begins long before the metal is melted, with advanced design and simulation. Engineers utilize Computer-Aided Design (CAD) for precise part modeling, followed by Finite Element Analysis (FEA) to predict stress distribution and structural integrity. Crucially, casting simulation software accurately models molten metal flow, solidification patterns, and potential defects like porosity or shrinkage, allowing for design optimization before any physical production begins. This virtual prototyping significantly reduces development time and costs.Once the design is validated, precisionpattern makingcommences, creating the exact replica of the desired part, often with allowances for shrinkage. This pattern is then used to create the mold, which can involve various processes:
sand casting (green sand, no-bake, shell molding) for larger or more complex parts; investment casting(lost-wax) for exceptional precision and surface finish; die casting for high-volume production of non-ferrous alloys; or ermanent mold castingfor repetitive production with good surface finish. The chosen process dictates the type of mold and core materials used, each selected for its ability to withstand high temperatures and maintain dimensional stability.
The heart of the process ismelting and pouring. Metals are melted in furnaces (induction, arc, cupola) under carefully controlled atmospheric conditions to prevent oxidation and ensure precise metallurgical composition. The molten metal is then poured into the prepared molds at a specific temperature and rate, meticulously controlled to prevent turbulence and ensure complete mold filling. After solidification, the casting undergoes fettling and finishing, which involves removing gates, risers, and excess material, followed by initial cleaning. Many castings then undergo heat treatment processes such as annealing, normalizing, quenching, or tempering to refine grain structure, relieve internal stresses, and achieve desired mechanical properties like hardness, ductility, or tensile strength.
Throughout the entire production cycle,rigorous quality assurance is paramount. This includes non-destructive testing (NDT) methods like ultrasonic testing (UT) for internal flaws, radiographic testing (RT) for subsurface defects, magnetic particle inspection (MPI) for surface cracks, and dye penetrant inspection (DPI). Dimensional accuracy is verified using Coordinate Measuring Machines (CMMs), and metallurgical analysis ensures the correct chemical composition and microstructure. This multi-stage quality control system guarantees that each machine casting meets the exact specifications and performance criteria demanded by its application, ensuring reliability and safety in its end-use.
Selecting the right casting manufacturer is a pivotal decision that profoundly impacts project success, encompassing factors such as part quality, cost-effectiveness, lead times, and overall supply chain reliability. The casting industry is diverse, comprising foundries with varying specializations, capacities, and technological capabilities. A clear understanding of these distinctions is crucial for optimal vendor selection. Below is a comparative analysis of different foundry types, highlighting their key characteristics:
|
Foundry Type/Specialty |
Key Strengths |
Typical Materials |
Precision Capabilities |
Volume Range |
Lead Time Implications |
Cost Factors |
|
Large Integrated Sand Foundries |
High capacity, versatile for large parts, wide material range, competitive pricing for high volume. |
Cast Iron (Grey, Ductile), Carbon Steel, Low Alloy Steel, Aluminum. |
Moderate (±0.030" to ±0.060" typical), often requires significant post-machining. |
Medium to Very High (100s to 100,000s annually). |
Moderate initial tooling, fast production once set up. |
Lower unit cost for high volumes. Higher tooling than smaller sand shops. |
|
Precision Investment Foundries |
Exceptional dimensional accuracy, superior surface finish, complex geometries, thin walls. |
Stainless Steel, High Alloy Steel, Nickel-based Alloys, Cobalt-based Alloys, Aluminum. |
Very High (±0.005" to ±0.015" typical), minimal post-machining. |
Low to Medium (1s to 10,000s annually). |
Longer initial lead times for tooling, but highly repeatable production. |
Higher unit cost due to process complexity and specialized materials. High tooling cost. |
|
Die Casting Specialists |
Extremely high production rates, excellent surface finish, thin walls, tight tolerances. |
Aluminum, Zinc, Magnesium, Copper Alloys. |
High (±0.002" to ±0.005" for small parts), often net-shape. |
Very High (10,000s to millions annually). |
Very long initial tooling lead time, but rapid production cycles. |
Lowest unit cost for extremely high volumes. Very high tooling cost. |
|
Regional Specialty Foundries |
Flexibility for small batch runs, quick turnarounds for specific alloys, niche expertise. |
Specialty Cast Iron, Bronze, Brass, some Aluminum. |
Varies widely based on process (sand, lost foam), generally moderate. |
Low (1s to 100s annually), prototyping. |
Often fastest for prototypes or small runs, shorter tooling cycles. |
Higher unit cost for low volumes. Lower tooling cost. |
This table illustrates that there is no universal "best" foundry; rather, the optimal choice is entirely dependent on the specific requirements of the project. For components demanding the utmost precision and complex internal features in exotic alloys, an investment foundry is likely the superior choice despite higher unit costs. Conversely, for high-volume automotive components made from aluminum, a die casting specialist offers unmatched efficiency and cost-effectiveness. The key is to engage with potential suppliers early, providing detailed specifications and performance criteria, to ensure alignment between project needs and foundry capabilities. Understanding these distinctions allows purchasers and engineers to make informed decisions that optimize both technical performance and financial viability.
While standard components serve many purposes, the true power of machine castings is unleashed through customization. In an industrial landscape characterized by diverse operational demands and highly specialized machinery, off-the-shelf solutions often fall short. Custom machine castings provide the ultimate flexibility, allowing engineers to design components precisely tailored to achieve optimal performance, integrate seamlessly into existing systems, and withstand specific environmental stressors. This collaborative process begins with intensivedesign consultation, where client engineers and foundry experts work together from concept to final product, leveraging advanced simulation tools to refine geometries, predict material behavior, and ensure manufacturability.
Critical to customization is the meticulousmaterial selection. Foundries offer an extensive palette of alloys, each with unique mechanical, thermal, and chemical properties. For instance, an application requiring extreme wear resistance might opt for a high-chromium white cast iron, while a component needing excellent ductility and impact resistance might specify a particular grade of ductile iron or cast steel. For aerospace or medical devices, lightweight aluminum alloys or biocompatible stainless steels might be chosen. The selection is driven by the part’s operating environment, load conditions, temperature fluctuations, and exposure to corrosive agents. This tailored material approach ensures the casting not only meets but often exceeds performance expectations.
Furthermore,process optimization is an integral part of customization. The foundry will select the most appropriate casting method (e.g., sand, investment, permanent mold, die casting) based on factors like required precision, surface finish, production volume, and material choice. Each method has its own strengths and limitations, and a skilled foundry will leverage its expertise to choose the process that yields the best quality and cost efficiency for the specific custom part. Beyond the initial casting, extensive post-casting operations further enhance customization. These can include precision machining to achieve ultra-tight tolerances on critical dimensions, specialized heat treatments to enhance specific mechanical properties (e.g., hardening, stress relief), and various surface finishing techniques such as shot blasting, painting, powder coating, or plating for corrosion resistance, aesthetic appeal, or improved wear characteristics. The ability to integrate these secondary operations under one roof or through a well-managed supply chain streamlines production and ensures consistent quality. This comprehensive approach to customization transforms machine castings from generic components into highly engineered, application-specific solutions that deliver superior functionality and extended operational life.
The versatility and inherent advantages of machine castings translate into their indispensable role across an incredibly broad spectrum of industrial sectors. Their ability to deliver strength, precision, and complex geometries makes them foundational components in machinery that powers our world. In the automotive industry, castings are ubiquitous. Engine blocks, cylinder heads, transmission casings, crankshafts, and brake calipers are predominantly cast components, chosen for their ability to withstand immense pressure and temperature variations while maintaining precise dimensions and intricate internal passages for fluids and gasses. The durability and cost-effectiveness of these cast parts are critical for mass production vehicles.
Theaerospace sector leverages advanced castings for lighter-weight, high-strength components. Turbine housings, structural brackets, and various engine parts are often investment cast from superalloys like nickel-based or cobalt-based materials, which offer exceptional high-temperature strength and corrosion resistance. The precision of investment casting minimizes machining, crucial for reducing costs and material waste in expensive alloys. In heavy machinery and construction equipment, robust castings are essential. Gearbox housings, hydraulic pump bodies, track links, counterweights, and structural frames for excavators, bulldozers, and agricultural machinery rely on cast iron and steel for their immense strength, shock absorption, and ability to endure abrasive environments and heavy loads. These components ensure the longevity and reliability of equipment operating in harsh conditions.
Theenergy sector, encompassing oil & gas, renewable energy, and power generation, is another major consumer. Valve bodies, pump impellers, turbine components, and intricate housings for control systems are frequently cast. For instance, the massive hubs and intricate gearbox components of wind turbines are large ductile iron or cast steel components, designed to withstand enormous dynamic forces over decades of operation. In medical equipment, precision investment castings are used for intricate device housings, surgical instrument parts, and specialized implants where biocompatibility, high surface finish, and intricate details are paramount. Finally, in the machine tool industry, the bases, frames, columns, and headstocks of lathes, milling machines, and grinders are typically cast from high-grade grey cast iron. Their superior vibration damping properties and inherent rigidity are critical for achieving the high precision and surface finish required in modern manufacturing processes. These diverse examples underscore how machine castings are not merely components but fundamental enablers of technological progress and industrial capability across virtually every facet of modern life.
As industries evolve and technological frontiers expand, the role of machine castings continues to be central and transformative. Far from being a static, traditional manufacturing method, casting is undergoing continuous innovation, ensuring its enduring relevance in an increasingly dynamic world. The future of machine castings is characterized by the integration of cutting-edge technologies and a renewed focus on sustainability. One significant trend is the exploration of hybrid manufacturing approaches, where traditional casting methods are combined with additive manufacturing. For instance, 3D printed sand molds can accelerate prototyping and enable even more intricate geometries without traditional pattern making, while direct metal additive manufacturing can be used for highly customized, low-volume components that complement cast bases or structures.
Advancements inmaterial science continue to push boundaries, with the development of lighter, stronger, and more resilient alloys. This includes high-strength aluminum and magnesium alloys for lightweighting, advanced high-entropy alloys for extreme temperature applications, and specialty steels with enhanced corrosion and wear resistance. These new materials, coupled with sophisticated casting techniques, will unlock possibilities for components in even more demanding environments, from deep-sea exploration to advanced aerospace applications. The digitalization of casting processes is also gaining momentum. Artificial intelligence and machine learning are being applied to optimize melt parameters, predict potential defects in real-time, and enhance process control, leading to higher yields, improved quality, and reduced waste. Predictive maintenance of foundry equipment, data-driven process adjustments, and fully automated pouring systems are transforming foundries into high-tech, data-driven operations.
Finally, the drive towards sustainability is profoundly influencing the casting industry. Foundries are increasingly adopting practices that prioritize energy efficiency, minimize emissions, and maximize the use of recycled materials. The inherent recyclability of metals means that castings contribute significantly to circular economy principles, offering a sustainable alternative to many other manufacturing methods. As industries strive for greater efficiency, reduced environmental impact, and superior performance, the fundamental advantages of machine castings – their ability to create complex, strong, and durable components from a wide range of materials – will continue to position them as an irreplaceable foundation of industrial progress. The evolution of machine castings is not just about making parts; it's about continuously refining a critical technology that underpins the innovation and reliability of the machines that drive our modern world.
What exactly are machine castings?
Machine castings are components produced by pouring molten metal into a mold cavity, allowing it to solidify into a specific, often complex, shape. They form the foundational parts of machinery across nearly all industrial sectors, known for their strength, durability, and ability to achieve intricate geometries.
What materials are commonly used for machine castings?
A wide range of metals are used, including various grades of cast iron (grey, ductile, malleable), cast steel (carbon, alloy, stainless), aluminum alloys, magnesium alloys, copper-based alloys (bronze, brass), and specialized superalloys (nickel, cobalt-based) for high-performance applications.
What are the primary advantages of using machine castings over other manufacturing methods?
Key advantages include the ability to produce complex internal and external geometries in a single piece, excellent strength-to-weight ratios, superior vibration damping properties in certain alloys, material versatility, and cost-effectiveness for medium to high-volume production due to reduced material waste and minimal post-processing.
How is quality ensured in the production of machine castings?
Quality assurance involves multiple stages: design simulation (FEA, solidification modeling), precise pattern making, controlled melting and pouring, heat treatment, and extensive quality control measures. These include non-destructive testing (ultrasonic, radiographic, magnetic particle inspection), dimensional inspection with CMMs, and metallurgical analysis.
Can machine castings be customized for specific applications?
Absolutely. Customization is a core strength. Foundries work closely with clients on design, material selection (choosing specific alloys for desired properties), process optimization, and a range of post-casting operations like machining, heat treatment, and surface finishing to meet precise application requirements.
What industries most commonly utilize machine castings?
Machine castings are vital across numerous industries, including automotive (engine blocks, transmission cases), aerospace (turbine housings), heavy machinery (gearboxes, frames), energy (valve bodies, wind turbine components), machine tools (bases, columns), and medical equipment (device housings).
What are the typical lead times for custom machine castings?
Lead times vary significantly based on complexity, material, casting method, and foundry capacity. Initial tooling can take several weeks to months, while subsequent production runs for established parts can range from a few weeks for simpler components to several months for highly complex or large-volume orders. Effective project management and early engagement with the foundry are crucial.
