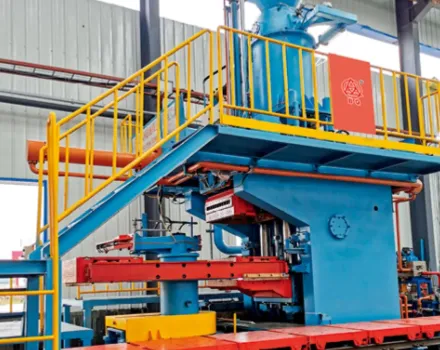

Introduction to Advanced Core Making Machine Foundry Technologies

In the intricate world of metal casting, the core is undeniably the silent architect of internal geometries, dictating the ultimate form and functionality of complex components. Historically, core making was often a labor-intensive, time-consuming process prone to inconsistencies. However, the modern foundry landscape has been fundamentally reshaped by advancements in core making machine foundry technology. Today, these sophisticated machines are not merely pieces of equipment; they are precision instruments that empower foundries to produce intricate cores with unparalleled accuracy, consistency, and speed. The evolution from manual core boxes to highly automated, digitally controlled systems represents a monumental leap, enabling foundries to meet increasingly stringent demands for dimensional precision, surface finish, and mechanical properties of cast parts. This pivotal shift has profound implications for industries ranging from automotive and aerospace to heavy machinery and energy, where the reliability and performance of cast components are non-negotiable. This article delves deep into the transformative power of advanced core making machines, exploring their technical prowess, economic impact, and strategic importance in maintaining a competitive edge in the global manufacturing arena. Understanding the nuances of these technologies is no longer optional but a prerequisite for any foundry aiming to optimize its production, reduce waste, and consistently deliver superior quality castings.

Revolutionizing Foundry Operations: The Data-Driven Impact of Modern Core Making Machines

The transition to modern core making machines within the foundry sector is not merely an incremental improvement; it represents a paradigm shift validated by compelling data. Foundries embracing these advanced systems report dramatic operational efficiencies and cost reductions that were previously unattainable. Consider the impact: one prominent automotive foundry, struggling with high scrap rates and extended lead times due to outdated core production, implemented a fully automated cold box core making system. The results were astounding—a 35% reduction in core-related casting defects and a 40% decrease in core manufacturing cycle time. This translates directly into significant cost savings, as rework and material waste are minimized, and production throughput is substantially increased. Labor optimization is another critical area; automated core handling and integrated robotics can reduce direct labor costs associated with core production by up to 50%, freeing skilled workers for more complex, value-added tasks. Furthermore, the precise control over sand mixing, blowing, and gassing sequences offered by contemporary machines ensures remarkable consistency from core to core. This consistency is crucial for industries where component uniformity is paramount, such as engine blocks or turbine blades. Data from various case studies consistently demonstrates that investing in cutting-edge core making machine technology leads to a rapid return on investment, often within 18-24 months, driven by reduced operational expenditure, enhanced product quality, and increased production capacity. The ability to produce complex, high-quality cores reliably and efficiently is no longer just an advantage but a fundamental necessity for any foundry striving for long-term sustainability and market leadership in a data-driven manufacturing environment.

Unpacking Technical Superiority: Key Advantages of Contemporary Core Making Equipment

Modern core making machines stand apart from their predecessors through a confluence of sophisticated technical advancements designed to enhance performance, versatility, and reliability. At the heart of their superiority lies the precision of their blowing mechanisms. Advanced core shooters utilize optimized sand reservoir designs and multi-port blow plates, ensuring uniform sand filling and compaction even in the most intricate core geometries. This precise control mitigates issues like soft spots or voids, which are common culprits behind casting defects. Furthermore, contemporary machines incorporate sophisticated gassing systems, particularly for cold box processes, that provide exact control over gassing pressure, duration, and purge cycles, minimizing binder consumption while ensuring complete curing and strong, stable cores. Many systems now feature fully automated core handling and extraction, often integrating robotic arms that gently remove fragile cores and place them onto conveyor systems for further processing or assembly. This reduces manual labor, minimizes damage, and ensures consistent throughput. Integrated control systems, powered by advanced PLCs (Programmable Logic Controllers) and intuitive HMI (Human-Machine Interface) touchscreens, offer real-time monitoring of all process parameters, fault diagnostics, and recipe management. This allows for rapid changeovers and ensures repeatable quality. Energy efficiency has also become a focal point, with innovations such as servo-driven axes, optimized hydraulic systems, and regenerative braking reducing power consumption significantly compared to older models. The robust construction, often incorporating heavy-duty frames and high-quality components, contributes to exceptional machine longevity and reduced maintenance requirements. Moreover, modern machines offer greater flexibility, capable of accommodating a wide range of core sand mixtures, binder systems (cold box, hot box, inorganic), and core sizes, making them indispensable assets for foundries with diverse production needs.

Navigating the Market: A Comparative Analysis of Leading Core Making Machine Manufacturers

Choosing the right core making machine is a strategic decision that can significantly impact a foundry's operational efficiency, product quality, and long-term profitability. The market is populated by several reputable manufacturers, each offering distinct advantages in terms of technology, automation, and support. A thorough comparison is essential to align a machine's capabilities with specific foundry requirements. Key factors to evaluate include the primary core making process supported (cold box, hot box, inorganic), the level of automation offered, throughput capacity, energy consumption, maintenance requirements, and the extent of customization possibilities. Below is a simplified comparative analysis, illustrating typical differentiators:

This table highlights that while some manufacturers excel in sheer volume or specific technological niches, others offer a more balanced, versatile, and highly customizable approach. The selection process must involve a detailed assessment of a foundry's current and future production needs, budget constraints, desired automation level, and the importance of long-term support and service. A dialogue with potential suppliers regarding their R&D capabilities, integration expertise, and ability to provide a complete solution package is crucial for making an informed investment decision.

Tailored Excellence: Crafting Custom Core Making Machine Solutions for Unique Foundry Needs

In a manufacturing landscape increasingly driven by bespoke requirements and highly specialized components, a one-size-fits-all approach to core making machines is rarely optimal. Many foundries face unique challenges stemming from complex core geometries, specific material requirements, limited floor space, or the need to integrate seamlessly with existing production lines. This is where the power of customized core making machine solutions truly shines. Expert manufacturers collaborate closely with foundries to assess their precise needs, delving into details such as core dimensions, production volume, desired cycle times, sand types, binder systems (e.g., cold box, warm box, hot box, inorganic, no-bake), and the required level of automation. This consultative approach often begins with a thorough analysis of CAD models for cast parts and cores, allowing engineers to design a machine that perfectly matches the core's complexity and dimensional tolerances. Customization might involve designing specific clamping systems for irregular core boxes, developing multi-cavity tooling for increased throughput of smaller cores, or integrating advanced robotics for automated core assembly and placement. For foundries with constrained footprints, compact machine designs or vertical configurations can be engineered to maximize space utilization. Furthermore, environmental considerations often drive customization, such as implementing advanced fume extraction systems for specific binder chemistries or designing machines compatible with eco-friendly inorganic binder systems. Beyond the hardware, software customization plays a vital role. Tailored HMI interfaces can simplify operation, integrate with existing MES (Manufacturing Execution Systems), and provide specialized data reporting for quality control and process optimization. The true value of a customized core making machine lies in its ability to address specific bottlenecks, enhance operational flexibility, and deliver cores that consistently meet the most exacting standards, ultimately leading to superior casting quality and a stronger competitive position.

Real-World Transformation: Application Cases of Advanced Core Making Machines

The impact of advanced core making machines is best illustrated through real-world applications across diverse industrial sectors, where they have demonstrably solved complex challenges and driven significant improvements. One compelling example comes from the automotive industry, specifically in the production of intricate engine blocks. A major automotive supplier was struggling with consistently high scrap rates and labor-intensive processes for producing complex water jacket cores. By investing in a multi-station cold box core shooter with integrated robotic core extraction and assembly, they achieved a remarkable transformation. The precise sand filling and gassing cycles drastically reduced core defects, leading to a 28% reduction in casting scrap. Furthermore, the automated handling system eliminated manual manipulation, reducing core damage and freeing up skilled operators, ultimately increasing overall production throughput by 30% and reducing per-unit costs. Another illustrative case is found in the aerospace sector, where the demand for lightweight yet robust components necessitates extremely precise internal geometries. A manufacturer of structural components for aircraft wings required exceptionally thin-walled, dimensionally stable cores made from a specific ceramic-sand mix. A conventional approach proved inadequate. The solution involved a highly customized inorganic core making machine, engineered to handle the unique material properties and featuring ultra-precise blowing and curing parameters. This tailored system enabled the production of cores with wall thicknesses down to 1.5mm, a feat previously considered impossible, and achieved a dimensional accuracy within ±0.1mm. This not only met the stringent aerospace quality requirements but also opened up possibilities for new, lighter component designs. Finally, in the heavy machinery sector, a foundry producing large, complex hydraulic valve bodies faced challenges with long cycle times and inconsistency in their large hot box cores. The implementation of a high-capacity, fully automated hot box core machine, featuring optimized heating platens and advanced temperature control, halved their core production cycle time. The consistent heat distribution ensured uniform core strength, reducing post-casting machining needs and extending tooling life by 15%. These diverse applications underscore that advanced core making machines are not just equipment but strategic tools that drive innovation, elevate quality, and unlock significant operational and economic advantages across the manufacturing spectrum.

The Future of Precision Casting: Embracing Innovation in Core Making Machine Foundry Operations

The journey of the core making machine foundry has been one of continuous innovation, evolving from basic tools to sophisticated, intelligent systems that are fundamental to modern precision casting. The insights gathered throughout this discussion—from the profound data-driven impact on operational efficiencies and cost reduction, through the technical superiority of contemporary equipment, the strategic considerations in manufacturer selection, to the value of bespoke solutions and the tangible successes in real-world applications—underscore a clear trajectory. Foundries that embrace these advancements are not merely keeping pace; they are setting new benchmarks for quality, productivity, and sustainability. Looking forward, the future of core making machine technology is poised for further integration with Industry 4.0 principles. Expect to see enhanced connectivity, allowing for seamless data exchange between core machines, quality control systems, and enterprise resource planning (ERP) platforms. Artificial intelligence and machine learning will play an increasing role in predictive maintenance, process optimization, and real-time defect detection, further minimizing downtime and maximizing output. The demand for sustainable manufacturing will drive continued development in inorganic and binderless core technologies, reducing environmental impact and improving workplace safety. Ultimately, the ability to produce cores with unprecedented accuracy, consistency, and speed will remain the cornerstone of high-quality casting. Investing in the latest core making machine foundry technologies is no longer just an upgrade; it is a strategic imperative for any foundry aiming to secure its competitive advantage, foster innovation, and thrive in the ever-evolving global manufacturing landscape, ensuring the continuous production of superior cast components for decades to come.

Frequently Asked Questions (FAQ) about Core Making Machines in Foundries

1. What is a core making machine?

A core making machine is specialized foundry equipment used to produce sand cores, which are pre-formed sand shapes inserted into a mold to create internal cavities or intricate internal features in a cast metal part. These machines mix core sand with binders, compact the mixture into a core box (tooling), and then cure it to form a solid, stable core.

2. What are the main types of core making processes?

The main types include:

• Cold Box Process:Uses a binder system (typically a resin and an isocyanate) that hardens when exposed to a gaseous catalyst (e.g., amine gas) at room temperature. It's fast and energy-efficient.
• Hot Box Process:Employs a thermosetting resin binder system that hardens when the core box is heated, typically to 200-260°C (400-500°F). It produces strong, dimensionally stable cores.
• Inorganic Core Making:Uses water-glass (sodium silicate) or other inorganic binders that harden through heating (microwave or conventional) or CO2 gassing, producing cores with significantly reduced emissions during casting.
• Shell Core Process:Uses thermosetting resin-coated sand, which is dumped onto a heated pattern plate. The resin cures, forming a shell-like core.
•

3. How do modern core making machines improve casting quality?

Modern core making machines improve casting quality through:

• High Dimensional Accuracy:Precise control over sand compaction and core box filling ensures cores that accurately replicate design specifications.
• Consistency:Automated processes minimize human error, leading to highly consistent core properties (strength, permeability, surface finish).
• Reduced Defects:Uniform core density and optimal curing reduce gas defects, sand inclusions, and core collapse during casting.
• Flexibility:Ability to produce complex core geometries that were previously impossible, enabling more advanced casting designs.
•

4. What factors should be considered when selecting a core making machine?

Key factors include:

• Core Complexity & Size:Machine capacity and suitability for the required core geometry.
• Production Volume:Throughput (cores per hour) needed to meet production demands.
• Core Process Type:Compatibility with desired binder systems (cold box, hot box, inorganic).
• Automation Level:Manual, semi-automatic, or fully automatic (with robotics).
• Energy Efficiency & Environmental Impact:Operational costs and emissions.
• Integration with Existing Systems:Compatibility with foundry layout and MES.
• Manufacturer Reputation & After-Sales Support:Reliability, service, and spare parts availability.
• Budget:Initial investment and long-term operating costs.
•

5. Can core making machines be integrated into automated foundry lines?

Absolutely. Modern core making machines are designed for seamless integration into fully automated foundry lines. This often involves robotic handling systems that extract cores, perform secondary operations (like assembling multiple core pieces), apply core coatings, and precisely place the finished cores into mold sections. Such integration significantly reduces manual labor, increases throughput, and minimizes core damage, contributing to a highly efficient and lights-out manufacturing environment.

6. What are the benefits of inorganic core making?

Inorganic core making offers several significant benefits:

• Environmental Friendliness:Drastically reduces or eliminates hazardous emissions (e.g., VOCs, odors) during core production and casting, improving workplace air quality and reducing environmental impact.
• Improved Casting Quality:Often leads to cleaner castings with fewer gas defects due to less organic material in the core.
• Enhanced Operator Safety:Eliminates exposure to organic fumes and hazardous binder components.
• Thermal Stability:Inorganic cores tend to be more thermally stable, potentially reducing veining defects.
•

7. How do you ensure the longevity and maintenance of a core making machine?

Ensuring longevity and optimal performance involves:

• Regular Preventative Maintenance:Adhering to manufacturer-recommended schedules for cleaning, lubrication, and inspection of critical components (e.g., cylinders, valves, sensors).
• Quality Core Box Maintenance:Keeping core boxes clean and in good repair is crucial for core quality and machine longevity.
• Proper Sand & Binder Management:Using clean, consistent sand and correct binder ratios prevents material buildup and machine wear.
• Operator Training:Well-trained operators understand proper machine operation, basic troubleshooting, and maintenance procedures.
• Genuine Spare Parts:Using original or high-quality compatible spare parts to maintain machine integrity.
• Predictive Maintenance Technologies:Implementing sensors and software for real-time monitoring and anomaly detection to predict potential failures before they occur.
